TFI 600T 4000 CNC Press Brake: High-Capacity Bending Solution

Overview of TFI 600T 4000 CNC Press Brake

The TFI 600T 4000 CNC Press Brake is engineered to provide exceptional bending performance with industrial-grade precision. Boasting a robust 600 Ton (6000 kN) pressing force and a 4000 mm bending length, this machine is perfectly suited for heavy steel fabrication and large structural components.

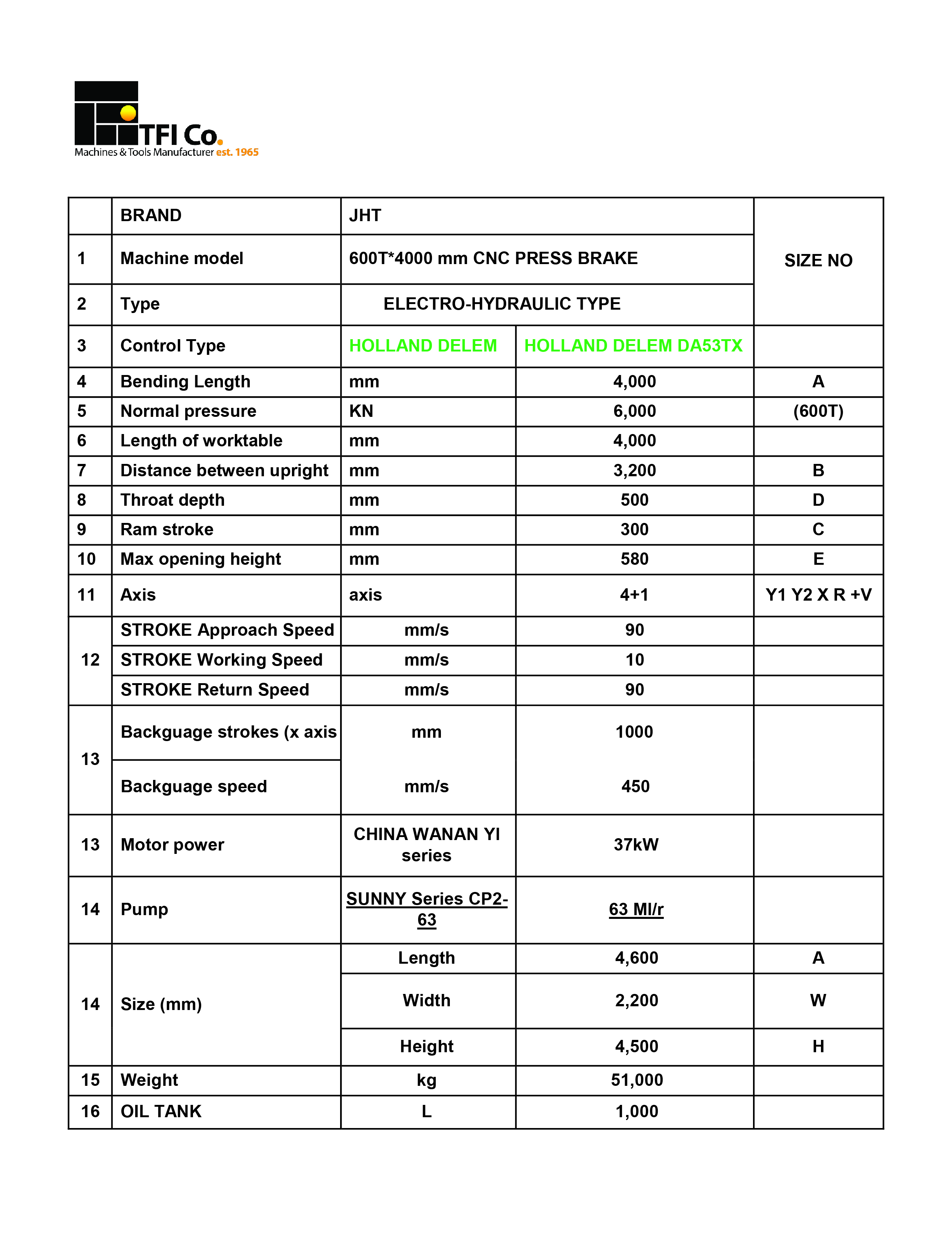

Key Specifications and Features

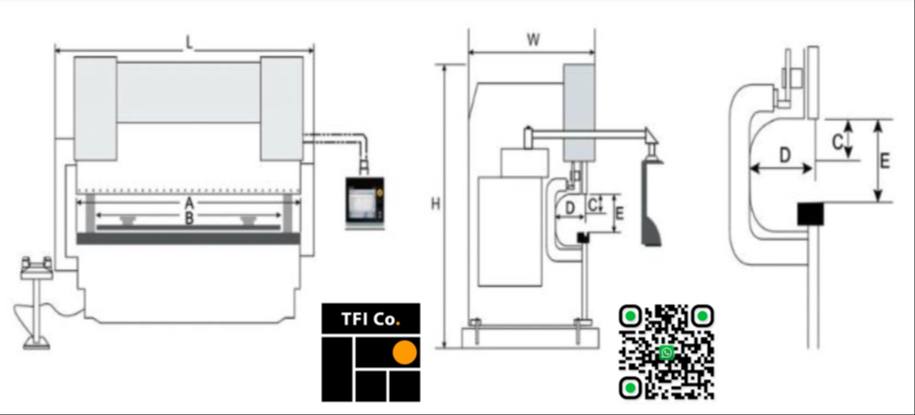

The machine is equipped with a 300 mm ram stroke, a 500 mm throat depth, and a 580 mm maximum opening height, offering versatility for processing thick and oversized metal sheets. Additionally, the 3200 mm distance between uprights ensures stability and uniform bending accuracy across extended workpieces.

Featuring a 4+1 axis configuration (Y1, Y2, X, R + V crowning), the system ensures synchronized cylinder movement and accurate back gauge positioning. With a 1000 mm X-axis travel range and a 450 mm/s back gauge speed, it enhances positioning efficiency and accelerates production rates.

Power and Durability

Driven by a 37 kW main motor and supported by a 1000-liter hydraulic oil tank, the TFI 600T 4000 maintains consistent pressure and dependable performance during prolonged heavy-duty operations. Weighing a total of 51,000 kg, its reinforced structure increases rigidity, reduces vibration, and guarantees long-term durability in challenging industrial settings.

For more information on the TFI 600T 4000 CNC Press Brake or to request a quote, contact us today.
