BM_50_46 Matrix: 86° Grooves 6mm & 32mm (Var A)
Bending Matrix BM_50_46 – Two 86° Grooves 6mm & 32mm (Variant A) | Silver Class – “BM_47_46” – “BM_50_46_6x86_32x86_S1”
Reference:
BM_50_46_6x86_32x86_S15
Condition:
New product
BM_50_46 (Variant A) — two-groove 86° bending matrix, 50mm body, 46mm height. Grooves at 6mm (~0.75mm sheet) and 32mm (~4mm sheet) — no angle recalibration between gauges. Silver Class. Available across the UAE and GCC.
Data sheet
- Length: 3200 mm
- Width: 50 mm
- Thickness: 46 mm
More info
Technical Specifications
- V-Opening Width: 32.00 mm
- Die Height (H): 46.00 mm
- Body Thickness (B): 50.00 mm
- Bending Angle: 86.00°
- Material Grade: 42CrMo4
- Tolerance Class: DIN 7168 Fine
- Segment Composition: Single block die — 15mm offset mounting slot
- Product Grade: Silver Class
Clamp System Compatibility
- AFH / Euro Style — AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
- AMADA™ Direct-Mount — AMADA™ native clamp systems
A two-groove standard bending matrix — 50 mm body, 46 mm height, 15 mm offset slot. Carries a 6 mm groove at 86° for thin-sheet precision bending (approximately 0.75 mm material) alongside a 32 mm groove at 86° for medium-gauge structural work (approximately 4 mm material). Both grooves at 86° means the operator switches between thin-gauge and mid-gauge bending within the same program without re-angling the die or adjusting backstop references — only the groove face changes. The offset slot is machined to standard press brake die holder dimensions.

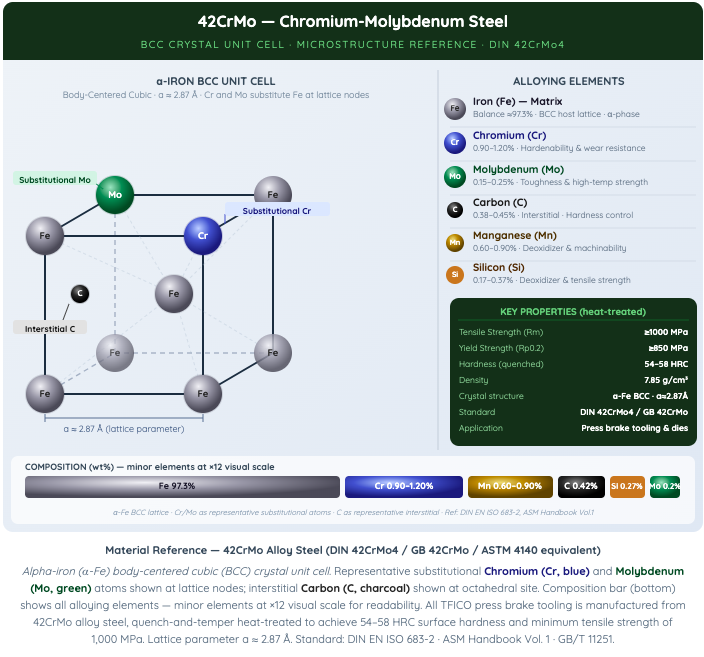

TFI Co. provides precision press brake bending matrices for the metalworking industry, manufactured from 42CrMo (Chromium-Molybdenum Steel) — hard, precision-ground, and well-tested for production-intensive bending environments. All V-opening dimensions conform to DIN 7168 tolerance standards.
Available for immediate delivery across the UAE (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar from TFI Co. logistics centres.
All tools come with a maximum tonnage capacity. TFI Co. strongly advises all customers to stay within the rated capacity for staff safety, and to only apply the stated maximum force — not more.
Technical Specifications Disclaimer
TFI Co. provides these technical specifications as a reference only. TFI Co. accepts no liability if a third-party manufacturer applies these specifications and is unable to achieve equivalent product quality. The manufacturing outcomes of any external production facility are entirely beyond TFI Co.’s control and responsibility.
Pricing Notice
All prices shown on this page are indicative estimates only and are subject to market fluctuation. For precise and up-to-date pricing, please contact us directly — scan the QR code printed on the product images, use the live chat button on this page, or find the contact number for your region at the bottom of this page.
TFI Co. supplies the BM_50_46 Matrix with two 86° grooves for 6 mm and 32 mm (Variant A), a precision press brake tool manufactured since 1965 for industrial buyers across the UAE and GCC. This product page delivers the exact reference BM_50_46_6x86_32x86_S15, full dimensions, Silver Class construction, and confirmation that the grooves handle approximately 0.75 mm and 4 mm sheet thicknesses without angle recalibration, enabling procurement teams and production managers to specify the correct bending matrix for consistent metalworking results.
Essential Points
- Bending matrices feature dual 86-degree grooves sized 6mm and 32mm for metal sheets.
- Press brake tooling supports efficient production for buyers throughout UAE and GCC.
- Metal fabricators employ bending matrices to process multiple material thicknesses seamlessly.
- Operators bend different sheet gauges without recalibration using dual groove matrices.
- Manufacturers supply steel blades and press brake tools since 1965 to industrial buyers.
Industry Credentials
Customised confirmation of standards and qualifications is available on request for our steel blades, machine knives, and press brake tools.
Used by metal fabricators, factory buyers, maintenance teams, production managers, and industrial procurement teams throughout the Middle East. Manufacturer of Steel Blades Since 1965. Trusted across metalworking and industrial cutting applications in the GCC.
Warranty: Replacement and technical support provided on all bending matrices, shear blades, and press brake tooling supplied to industrial buyers in the UAE, Saudi Arabia, Oman, and wider regional markets.
Performance Data
| Product Type | Press Brake Bending Matrix |
|---|---|
| Configuration | Two 86° grooves |
| Variant | A |
| Reference | BM_50_46_6x86_32x86_S15 |
| Length | 3200 mm |
| Body Width | 50 mm |
| Height | 46 mm |
| Groove Widths | 6 mm and 32 mm |
| Sheet Gauges | 0.75 mm and 4 mm |
| Class | Silver Class |
| Compatibility | Press brake tools for metalworking |
| Availability | UAE, GCC |
| Condition | New product |
| Manufacturer | TFI Co. since 1965 |
Field Use Cases
- Press Brake Bending: Seamless switching between 0.75mm and 4mm sheet gauges on 86° grooves without angle recalibration in continuous metal forming lines.
- UAE Metal Fabricators: UAE metal fabricators using the BM_50_46 Variant A matrix for precision 3200mm length bends in structural component production.
- GCC Maintenance Teams: Maintenance teams in GCC facilities installing Silver Class BM_50_46 matrices to sustain bending accuracy across daily shifts.
- Saudi Production Managers: Production managers in Saudi Arabian plants optimizing press brake setups with dual 6mm and 32mm grooves for varied material thicknesses.
- Omani Industrial Procurement: Procurement teams in Oman sourcing TFI Co. press brake tools manufactured since 1965 for reliable metalworking operations.
- Middle East Sheet Forming: High-volume sheet metal bending in Middle East workshops deploying the 50mm width matrix for consistent 86° results on mild steel.
- Factory Workflow Integration: Integration into existing press brake stations by factory buyers to eliminate tool changes between thin and medium gauge bending tasks.
Technical Q&A
What is the BM_50_46 bending matrix?
The BM_50_46 bending matrix is a Silver Class two-groove 86° tool with a 50mm body and 46mm height in Variant A. It features grooves sized at 6mm for approximately 0.75mm sheet and 32mm for approximately 4mm sheet, enabling use with no angle recalibration. This new 3200mm long by 50mm wide product is manufactured by TFI Co. since 1965 for press brake applications across the UAE and GCC.
How are the grooves configured in the BM_50_46 Matrix Variant A?
In the BM_50_46 Matrix Variant A the grooves are configured at 86 degrees with 6mm and 32mm openings. These correspond to 0.75mm and 4mm sheet thicknesses respectively within the 46mm height profile. hTe layout allows operators to change material gauges without recalibrating bend angles. Produced by TFI Co. since 1965, this Silver Class matrix improves efficiency for industrial fabricators in the GCC.
Can the BM_50_46 Matrix handle different sheet thicknesses without recalibration?
Yes, the BM_50_46 Matrix handles 0.75mm and 4mm sheet thicknesses without angle recalibration. The 6mm groove and 32mm groove both deliver a consistent 86° bend, eliminating setup adjustments between gauges. This capability streamlines workflow for production managers using press brakes. The 3200mm Silver Class matrix is supplied new by TFI Co. sice 1965 throughout the UAE and GCC.
Does the BM_50_46 Matrix belong to the Silver Class?
Yes, the BM_50_46 Matrix belongs to the Silver Class under reference BM_50_46_6x86_32x86_S15. It is supplied as a new product with dual 86° grooves in a 50mm body and 46mm height. The configuration supports precise bending for varied sheet gauges without recalibration. TFI Co. has manufactured this industrial press brake tooling since 1965 for professional buyers in the Middle East.
Which dimensions define the BM_50_46 bending matrix?
The BM_50_46 bending matrix is defined by a 3200mm length, 50mm width, 50mm body and 46mm height. It incorporates two 86° grooves sized 6mm and 32mm for 0.75mm and 4mm sheets. This specification ensures stability and repeatability in press brake operations. The Silver Class Variant A is engineered by TFI Co. since 1965 to meet exacting standards of regional fabrication facilities.
How can I order the BM_50_46 Matrix for my operations in the UAE?
To order the BM_50_46 Matrix with 86° grooves 6mm and 32mm (Silver Class, 3200mm length, Variant A) for UAE operations, use Chat for the fastest response. Alternatively submit the Online Form or Call our team. We supply this exact reference BM_50_46_6x86_32x86_S15 directly to industrial buyers across the GCC as TFI Co., manufacturer since 1965.
TFI Co. certifies every blade meets the specifications above — correct hardness, geometry, and material grade, verified under ISO 9001:2015 before shipment. Achieving the stated performance figures also requires correct installation, operation within rated parameters, and scheduled maintenance. Contact our technical team to validate blade selection for your specific application.
Request a Quote
Get Fast Pricing on Whatsapp
Get Expert Blade Advice on Telegram
TFI Co. supplies precision BM_50_46 Matrix tooling to industrial buyers.
- Manufacturing the 86° dual groove Variant A press brake matrix since 1965 with exact reference BM_50_46_6x86_32x86_S15 and Silver Class construction for UAE and GCC markets.
- Enabling seamless switching between 0.75mm and 4mm gauges without angle recalibration and precision bends up to 3200mm in structural production lines.
- Acknowledging that bending performance and switching results may vary by operational context and equipment setup.
