BM_60_60 4-Way 85° Bending Matrix Four Grooves
Bending Matrix “BM_60_60” – 4-Way Rotatable 85° Four Grooves | Silver Class
Reference:
BM_60_60_50x85_16x85_35x85_22x85
Condition:
New product
BM_60_60 — 60mm body 4-way rotatable bending matrix, four 85° grooves (50/35/22/16mm). One die covers 2–6mm sheet. Reduce press brake setup time by 75%. Silver Class. The high-mix production solution across the UAE and GCC.
Data sheet
- Length: 3200 mm
- Width: 60 mm
- Thickness: 60 mm
More info
Technical Specifications
- V-Opening Width: 50.00 mm
- Die Height (H): 60.00 mm
- Body Thickness (B): 60.00 mm
- Bending Angle: 85.00°
- Material Grade: 42CrMo4
- Tolerance Class: DIN 7168 Fine
- Segment Composition: 4-way rotatable block — no mounting slot
- Product Grade: Silver Class
Clamp System Compatibility
- AFH / Euro Style — AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
- AMADA™ Direct-Mount — AMADA™ native clamp systems
TFI Co. provides Silver Class straight bending punch upper tools for press brake machines, serving the metal working and sheet metal fabrication industries. These tools are manufactured from high-quality alloy steel, precision-hardened and ground, and well-tested for multi-U-channel bending, box forming, and profile production on press brake machines. Available across the United Arab Emirates (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar.
The dimensions of this tool are a body thickness of 60 mm, with a bending angle of 85°.
Material & Steel Grade
Special grade steels — including BÖHLER tool steel™, Type 4 Molybdenum Steel, T10, T8, 42CrMo, and Cr12MoV — are the industry-standard materials for press brake punch and die tooling. The punch and die assembly absorbs the majority of the forming force produced by the press brake, making high-strength hardened steel essential for sustained production performance and dimensional consistency.

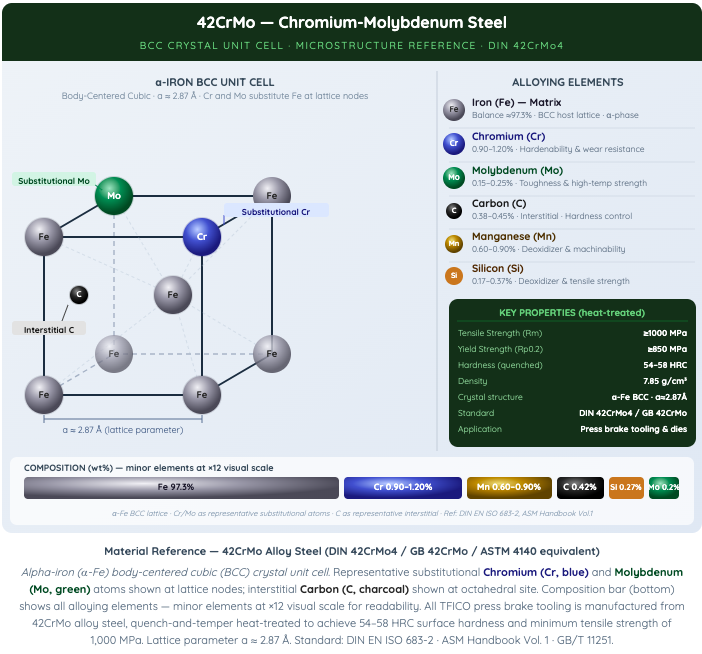

For press brake tooling, Chromium-Molybdenum Steel (Chromoly) is widely regarded as the ideal base alloy — combining exceptional tensile strength, corrosion resistance, and a long service life capable of handling the full force range of industrial press brake applications. Tungsten carbide tooling is also an excellent choice where surface hardness requirements are extreme.
This tool is manufactured from 42crmo4. — This alloy is selected for its toughness, fatigue resistance, and dimensional stability under cyclic bending loads.
Factories & Delivery
TFI Co. factories are positioned across key manufacturing regions to ensure the shortest possible lead times for customers and traders throughout the Middle East and beyond. Our management team, using the latest logistics technology, allocates each order to the optimal TFI Co. factory to ensure a seamless experience across logistics, fulfilment, and payment.
Dispatch scheduling is determined based on:
- Time and date of order placement
- Order quantity and total volume
- Delivery destination and transport routing to the customer site
Segment Composition
TFI Co. press brake punch segment sets are available in standard compositions. All sets include one left ear piece and one right ear piece for full profile coverage and improved maneuverability. Standard set lengths and individual segment configurations follow TFI Co. segment standards.
Dimensional Tolerances
All body thickness dimensions for this tool conform to DIN 7168 Fine tolerance standards (DIN — Deutsches Institut für Normung, the German Institute for Standardization). This tolerance framework guarantees consistent clamping fit and reliable tool interchange across compatible press brake clamping systems and adapters.
Maximum Bending Force & Safety
All TFI Co. press brake tools carry a maximum rated bending force, which defines the safe operating limit for both staff protection and long-term tool performance. TFI Co. strongly advises all operators to remain within the stated capacity of any tool at all times.
For Further Information
To confirm the specific working height for this tool model and verify compatibility with your press brake setup, please contact the TFI Co. technical team.
For a complete breakdown of the segment set composition for this model — including individual piece lengths, quantities, and ear piece specifications — our specialists at TFI Co. are ready to provide the full configuration details.
The exact rated maximum bending force and safe tonnage capacity applicable to this specific tool model can be confirmed by contacting TFI Co. prior to finalising your order.
A 4-way rotatable bending matrix — 60 mm body, 60 mm height — carrying four independent V-openings at 85° on four faces: 50 mm, 35 mm, 22 mm, and 16 mm. Rotating the block exposes a new groove for a different material thickness, eliminating the die change entirely and reducing setup time by up to 75% on multi-gauge production. One tool covers the material range from approximately 2 mm to 6 mm sheet. No mounting slot — the die seats directly on the machine bed for maximum stability and full footprint contact under load. The standard solution for high-mix, low-volume sheet metal environments where fast groove changeover determines throughput.
TFI Co. provides precision press brake bending matrices for the metalworking industry, manufactured from 42CrMo (Chromium-Molybdenum Steel) — hard, precision-ground, and well-tested for production-intensive bending environments. All V-opening dimensions conform to DIN 7168 tolerance standards.
Available for immediate delivery across the UAE (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar from TFI Co. logistics centres.
All tools come with a maximum tonnage capacity. TFI Co. strongly advises all customers to stay within the rated capacity for staff safety, and to only apply the stated maximum force — not more.
Technical Specifications Disclaimer & Pricing Notice
TFI Co. provides these technical specifications as a reference only. TFI Co. provides these technical specifications as a reference only. TFI Co. accepts no liability if a third-party manufacturer applies these specifications and is unable to achieve equivalent product quality. The manufacturing outcomes of any external production facility are entirely beyond TFI Co.’s control and responsibility.
All prices shown on this page are indicative estimates only and are subject to market fluctuation. For precise and up-to-date pricing, please contact us directly — scan the QR code printed on the product images, use the live chat button on this page, or find the contact number for your region at the bottom of this page.
TFI Co. manufactures the BM_60_60 4-Way 85° Bending Matrix Four Grooves as part of its range of press brake tools supplied to metal fabricators and industrial procurement teams across the UAE, Saudi Arabia, Oman, GCC, and wider Middle East markets. This 60 × 60 mm rotatable Silver Class die carries four 85° grooves (50/35/22/16 mm) in a single 3200 mm length body, enabling one tool to process 2–6 mm sheet while cutting press brake setup time by 75 % for high-mix production. Readers can evaluate exact specifications, confirm compatibility with their metalworking operations, and make informed purchasing decisions backed by a manufacturer of steel blades and machine knives since 1965.
Product Highlights
- Bending matrices feature four rotatable 85-degree grooves to accommodate 2-to-6-millimeter sheet metal.
- Setup time reductions reach 75 percent using multi-groove press brake tooling in metalworking applications.
- Factory buyers and maintenance teams select versatile bending matrices for efficient high-mix production runs.
- Production managers deploy four-way bending matrices during frequent die changes in fabrication facilities.
- TFI Co. manufactures bending matrices since 1965 for industrial users across UAE and GCC regions.
Quality Assurance
Customised confirmation of qualifications and manufacturing standards for steel blades, machine knives, and press brake tools is available on request.
Used by metal fabricators, factory buyers, maintenance teams, production managers, and industrial procurement teams across the UAE, GCC, and wider Middle East. Trusted positioning as Manufacturer of Steel Blades Since 1965 for precision shear blades, circular saw blades, bandsaw blades, and bending matrices in high-mix production.
Warranty: Detailed replacement and support terms for the BM_60_60 4-Way 85° Bending Matrix and all industrial knives are available on request.
Product Data Sheet
| Type | 4-Way Rotatable Bending Matrix |
|---|---|
| Model | BM_60_60 |
| Reference | BM_60_60_50x85_16x85_35x85_22x85 |
| Grooves | Four 85° grooves |
| V-Opening Widths | 50 mm, 35 mm, 22 mm, 16 mm |
| Length | 3200 mm |
| Width | 60 mm |
| Thickness | 60 mm |
| Sheet Thickness Capacity | 2-6 mm |
| Compatible With | Press brakes in metalworking applications, UAE, GCC |
| Product Class | Silver Class |
| Setup Time Reduction | 75% |
| Condition | New |
| Manufacturer | TFI Co. Since 1965 |
Where It Works
- High-Mix Production: Production managers in UAE fabrication plants deploy the BM_60_60 4-way rotatable bending matrix with 50/35/22/16 mm grooves to process varied 2–6 mm sheet orders while reducing press brake setup time by 75%.
- GCC Metal Fabricators: Metal fabricators across the GCC utilize the BM_60_60 Silver Class matrix in high-mix workflows to switch instantly between four 85° V-openings without changing dies on 3200 mm press brake beds.
- Maintenance Teams: Maintenance teams in Saudi Arabian factories rotate the 60 mm × 60 mm BM_60_60 body to access the required groove within seconds, minimizing downtime during daily bending operations.
- Press Brake Operations: Press brake operations handling 2–6 mm sheet metal employ the BM_60_60 four-groove matrix as a single-tool solution for repeated 85° bends in metalworking production lines.
- Industrial Procurement: Industrial procurement teams in the Middle East specify the BM_60_60 to consolidate press brake tooling inventory whle supporting multiple sheet thicknesses and bend requirements.
- Oman Fabrication Facilities: Fabrication facilities in Oman apply the BM_60_60 bending matrix during high-mix production runs where frequent changes between 50 mm, 35 mm, 22 mm, and 16 mm V-openings are required.
- Production Management: Production managers rely on the BM_60_60 4-way design to maintain output schedules in GCC metalworking shops by eliminating repeated die swaps for 85° sheet bending tasks.
Expert Answers
What is the BM_60_60 4-Way 85° Bending Matrix?
The BM_60_60 is a 60mm body 4-way rotatable bending matrix with four 85° grooves sized 50, 35, 22, and 16mm. This Silver Class die measures 3200mm in length with 60mm width and thickness. One tool covers 2 to 6mm sheet thicknesses and reduces press brake setup time by 75%. It is the high-mix production solution for fabricators in the UAE and GCC. TFI Co. has manufactured such industrial tooling since 1965.
How does the BM_60_60 bending matrix reduce setup time?
The BM_60_60 integrates four 85° grooves into a single 60 x 60mm rotatable body, allowing operators to select the required V-opening of 50mm, 35mm, 22mm, or 16mm by simple rotation. This eliminates repeated die changes in the press brake. The design delivers a 75% reduction in setup time for high-mix sheet metal production across UAE and GCC facilities.
Can the BM_60_60 handle sheets between 2 and 6mm thick?
Yes. The BM_60_60 4-way rotatable bending matrix is engineered so one die covers sheet thicknesses from 2 to 6mm. Its four 85° grooves (50/35/22/16mm) provide the precise V-opening needed for each gauge. This capability supports rapid changeovers without additional tooling, making it ideal for versatile metal fabrication demands in GCC press brake operations.
Does the BM_60_60 feature four 85° grooves?
Yes. The BM_60_60 contains four precision 85° grooves measuring 50mm, 35mm, 22mm, and 16mm within its rotatable 60mm body. Identified by reference BM_60_60_50x85_16x85_35x85_22x85, the new Silver Class matrix is 3200mm long. This configuration enables high-mix bending while maintaining accuracy for industrial users throughout the UAE, Saudi Arabia, and Oman.
Which groove sizes are included on the BM_60_60 matrix?
The BM_60_60 includes four groove widths at 85°: 50mm, 35mm, 22mm, and 16mm. This selection is machined into the 60mm thick rotatable body for quick access. The 3200mm length tool is optimized for 2–6mm sheet metal, allowing production managers to match the exact V-opening to material thickness without changing dies in regional press brake setups.
How can I purchase the BM_60_60 4-Way 85° Bending Matrix?
For the 3200mm BM_60_60 4-way rotatable bending matrix with four 85° grooves for 2–6mm sheets in GCC high-mix production, use Chat for the fastest response. Submit the Online Form or Call our team. TFI Co., manufacturer of steel blades and machine knives since 1965, supplies this Silver Class press brake tooling directly to industrial buyers in the UAE and wider Middle East.
TFI Co. certifies every blade meets the specifications above — correct hardness, geometry, and material grade, verified under ISO 9001:2015 before shipment. Achieving the stated performance figures also requires correct installation, operation within rated parameters, and scheduled maintenance. Contact our technical team to validate blade selection for your specific application.
TFI Co. supplies the BM_60_60 4-way bending matrix to metal fabricators and procurement teams across the UAE, GCC and wider regional markets.
- This 60×60 mm Silver Class rotatable die integrates four 85° grooves (50/35/22/16 mm) in one body to process 2–6 mm sheet thicknesses.
- It functions as a high-mix production solution that reduces press brake setup time by 75% through simple rotation to select the required V-opening.
- Stated performance values may vary by context, machine setup and material.
Since 1965 · Manufacturer of Steel Blades Since 1965 · Bound to the English language
