Data Sheet

Length: 3200 mm

More Info:
TFI Co. supplies the EU3111 Silver Class straight bending punch upper tool for press brake machines, catering to the metalworking and sheet metal fabrication industry across the UAE, Saudi Arabia, Oman, and Qatar. The EU3111 is a straight upper punch designed for standard press brake forming operations, precision-manufactured, and ready for immediate dispatch from TFI Co. logistics centers.

This tool features a working height of 150 mm and a body thickness of 26 mm, with a standard 86° bending angle ideal for general sheet metal work and production-line setups.

All body thickness dimensions adhere to DIN 7168 Fine tolerance standards, ensuring consistent clamping fit and tool interchangeability across compatible press brake systems.

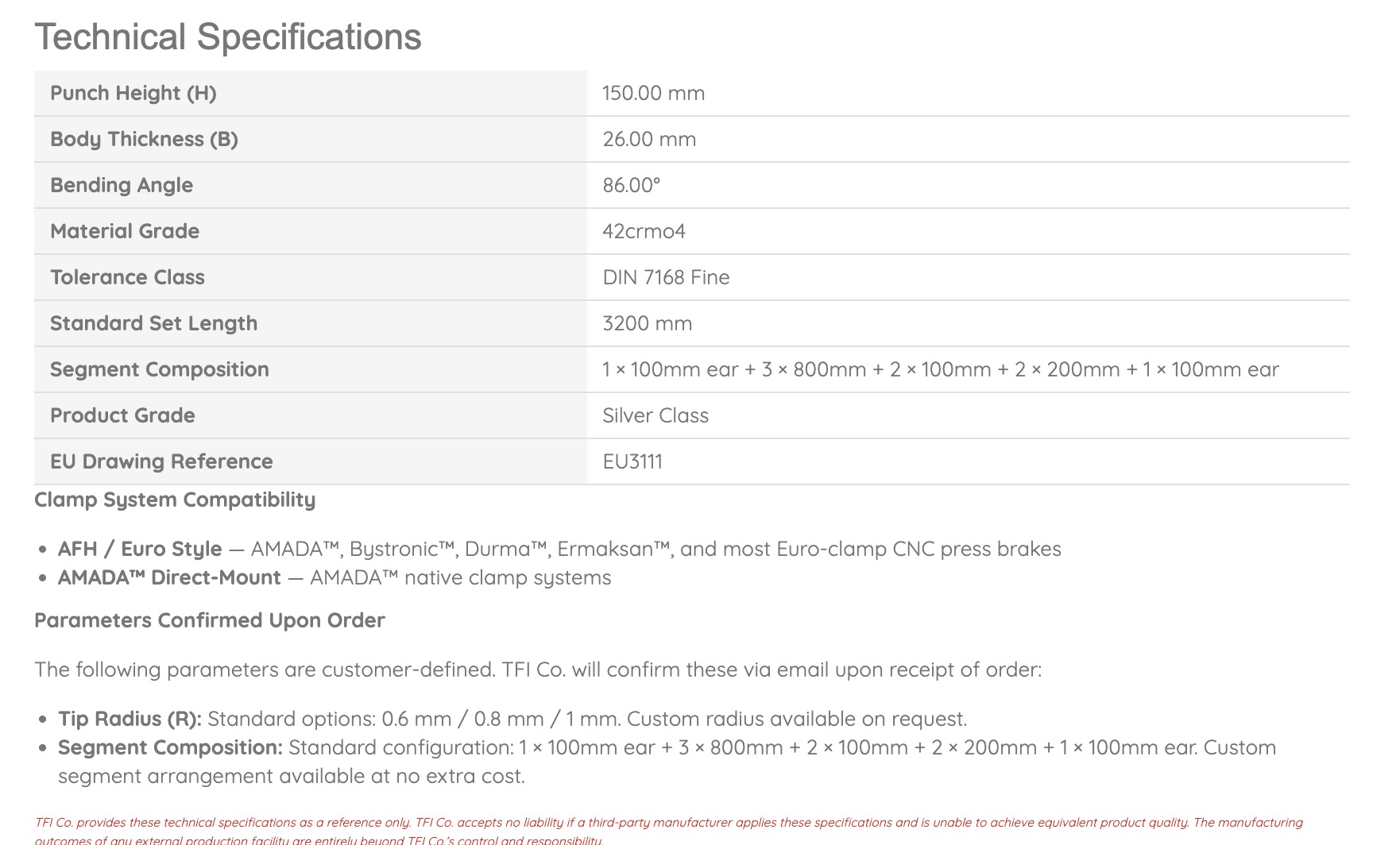

Technical Specifications

• Punch Height (H): 150.00 mm
• Body Thickness (B): 26.00 mm
• Bending Angle: 86.00°
• Material Grade: 42CrMo4
• Tolerance Class: DIN 7168 Fine
• Standard Set Length: 3200 mm
• Segment Composition: 1 × 100mm ear + 3 × 800mm + 2 × 100mm + 2 × 200mm + 1 × 100mm ear
• Product Grade: Silver Class
• EU Drawing Reference: EU3111

Clamp System Compatibility

• AFH / Euro Style: AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
• AMADA™ Direct-Mount: AMADA™ native clamp systems

Parameters Confirmed Upon Order

The following parameters are customer-defined. TFI Co. will confirm these via email upon receipt of order:

• Tip Radius (R): Standard options: 0.6 mm / 0.8 mm / 1 mm. Custom radius available on request.
• Segment Composition: Standard configuration: 1 × 100mm ear + 3 × 800mm + 2 × 100mm + 2 × 200mm + 1 × 100mm ear. Custom segment arrangement available at no extra cost.

TFI Co. provides these technical specifications as a reference only. TFI Co. accepts no liability if a third-party manufacturer applies these specifications and fails to achieve equivalent product quality. The manufacturing outcomes of any external production facility are entirely beyond TFI Co.’s control and responsibility.

TFI Co. offers Silver Class straight bending punch upper tools for press brake machines, serving the metalworking and sheet metal fabrication industries. These tools are crafted from high-quality alloy steel, precision-hardened and ground, and thoroughly tested for multi-U-channel bending, box forming, and profile production on press brake machines. Available across the United Arab Emirates (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar.

The dimensions of this tool are 150 mm × 26 mm (working height × body thickness), with a bending angle of 86°.

Material & Steel Grade

Special grade steels — including BÖHLER tool steel™, Type 4 Molybdenum Steel, T10, T8, 42CrMo, and Cr12MoV — are industry-standard materials for press brake punch and die tooling. The punch and die assembly absorbs the majority of the forming force produced by the press brake, making high-strength hardened steel essential for sustained production performance and dimensional consistency.

For press brake tooling, Chromium-Molybdenum Steel (Chromoly) is widely regarded as the ideal base alloy — combining exceptional tensile strength, corrosion resistance, and a long service life capable of handling the full force range of industrial press brake applications. Tungsten carbide tooling is also an excellent choice where surface hardness requirements are extreme.

This tool is manufactured from 42CrMo4 — an alloy selected for its toughness, fatigue resistance, and dimensional stability under cyclic bending loads.

Factories & Delivery

TFI Co. factories are strategically positioned across key manufacturing regions to ensure the shortest possible lead times for customers and traders throughout the Middle East and beyond. Our management team, using the latest logistics technology, allocates each order to the optimal TFI Co. factory to ensure a seamless experience across logistics, fulfillment, and payment.

Dispatch scheduling is determined based on:

• Time and date of order placement
• Order quantity and total volume
• Delivery destination and transport routing to the customer site

Segment Composition

TFI Co. press brake punch segment sets are available in standard compositions. All sets include one left ear piece and one right ear piece for full profile coverage and improved maneuverability. Standard set lengths and individual segment configurations follow TFI Co. segment standards.

Dimensional Tolerances

All body thickness dimensions for this tool conform to DIN 7168 Fine tolerance standards (DIN — Deutsches Institut für Normung, the German Institute for Standardization). This tolerance framework guarantees consistent clamping fit and reliable tool interchange across compatible press brake clamping systems and adapters.

Maximum Bending Force & Safety

All TFI Co. press brake tools carry a maximum rated bending force, which defines the safe operating limit for both staff protection and long-term tool performance. TFI Co. strongly advises all operators to remain within the stated capacity of any tool at all times.

For Further Information

For a complete breakdown of the segment set composition for this model — including individual piece lengths, quantities, and ear piece specifications — our specialists at TFI Co. are ready to provide the full configuration details.

The exact rated maximum bending force and safe tonnage capacity applicable to this specific tool model can be confirmed by contacting TFI Co. prior to finalizing your order.

Extended 150 mm working height version of the EU3111 straight punch. Same 26 mm body and 86° angle, added height for deeper box bending and taller enclosure profiles. Interchangeable within the 3100 series, allowing mixed-height sets to be assembled on the press brake for production runs covering multiple part depths in a single machine setup.
