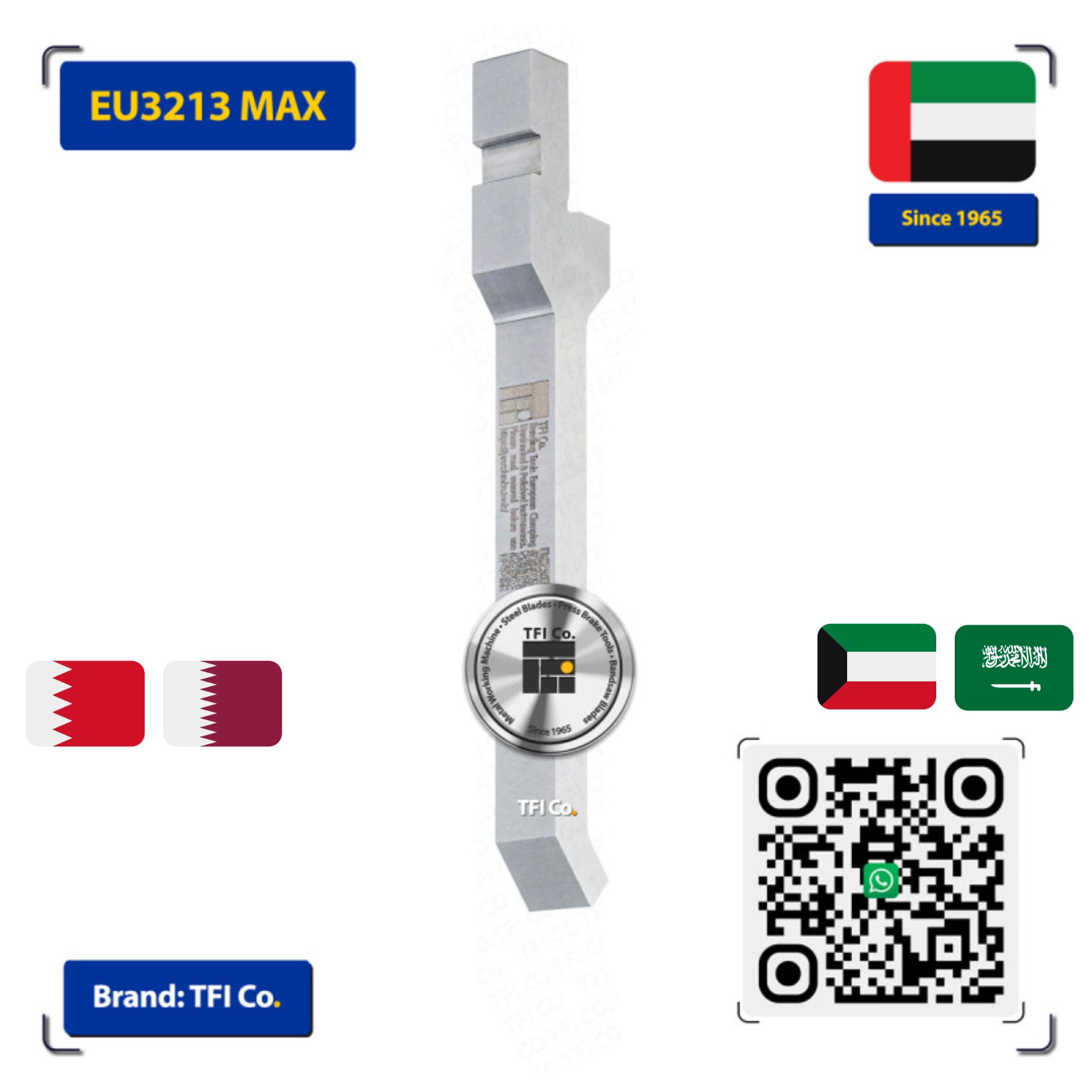

Data Sheet for EU3213 Silver Class Straight Bending Punch Upper Tool

Product Dimensions

Length: 3200 mm
Width: 150 mm
Thickness: 26 mm

Product Overview

TFI Co. supplies the EU3213 Silver Class straight bending punch upper tool for press brake machines, catering to the metalworking and sheet metal fabrication industries across the UAE, Saudi Arabia, Oman, and Qatar. The EU3213 is a precision-engineered straight upper punch designed for standard press brake forming operations. This tool is readily available for immediate dispatch from TFI Co. logistics centers.

Featuring a working height of 150 mm and a body thickness of 26 mm, the EU3213 offers a standard 86° bending angle, making it ideal for general sheet metal work and production-line setups.

This tool is crafted from 42CrMo (Chromium-Molybdenum Steel), a high-strength alloy chosen for press brake tooling due to its exceptional toughness, fatigue resistance, and consistent dimensional stability under cyclic bending loads. The tip contact zone is precision-hardened to 55–62 HRC, while the body maintains a hardness of 45–50 HRC. All body thickness dimensions adhere to DIN 7168 Fine tolerance standards, ensuring a consistent clamping fit and tool interchangeability across compatible press brake systems.

Technical Specifications

• Punch Height (H): 150.00 mm
• Body Thickness (B): 26.00 mm
• Bending Angle: 86.00°
• Material Grade: 42CrMo4
• Tip Hardness: 55–62 HRC
• Body Hardness: 45–50 HRC
• Tolerance Class: DIN 7168 Fine
• Standard Set Length: 835 mm
• Segment Composition: 1×100mm ear + 3×800mm + 2×100mm + 2×200mm + 1×100mm ear
• Product Grade: Silver Class
• EU Drawing Reference: EU3213

Clamp System Compatibility

• AFH / Euro Style: Compatible with AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
• AMADA™ Direct-Mount: Compatible with AMADA™ native clamp systems

Parameters Confirmed Upon Order

The following parameters are customer-defined and will be confirmed by TFI Co. via email upon receipt of the order:

• Tip Radius (R): Standard options include 0.6 mm, 0.8 mm, and 1 mm. Custom radius available upon request.
• Segment Composition: Standard configuration is 1×100mm ear + 3×800mm + 2×100mm + 2×200mm + 1×100mm ear. Custom segment arrangements are available at no additional cost.

Delivery Coverage

TFI Co. ships this product across the GCC region. Delivery is confirmed upon order to the following countries and territories:

• UAE: Delivered across all 7 emirates – Ajman, Abu Dhabi, Dubai, Fujairah, Ras Al Khaimah, Sharjah, and Umm Al Quwain
• Saudi Arabia: Delivered across all 13 regions – Riyadh, Makkah, Al Madinah, Al Qasim, Eastern Province, Asir, Tabuk, Hail, Northern Borders, Jazan, Najran, Al Bahah, and Al Jawf
• Qatar: Delivered across all 7 municipalities – Ad Dawhah (Doha), Al Khor, Ash Shamal, Ar Rayyan, Umm Salal, Al Wakrah, and Az Za’ayin
• Oman: Delivered across all 11 governorates – Al Batinah North, Al Batinah South, Al Buraymi, Ad Dakhiliyah, Muscat, Musandam, Al Sharqiyah North, Al Sharqiyah South, Al Wusta, Az Zahirah, and Dhofar
• Kuwait: Delivered across all 6 governorates – Al Ahmadi, Al Farwaniyah, Hawalli, Al Jahra, Al Asimah (Kuwait City), and Mubarak Al-Kabeer
• Bahrain: Delivered across all 4 governorates – Al Asimah (Manama), Al Janubiyah, Al Muharraq, and Ash Shamaliyah
